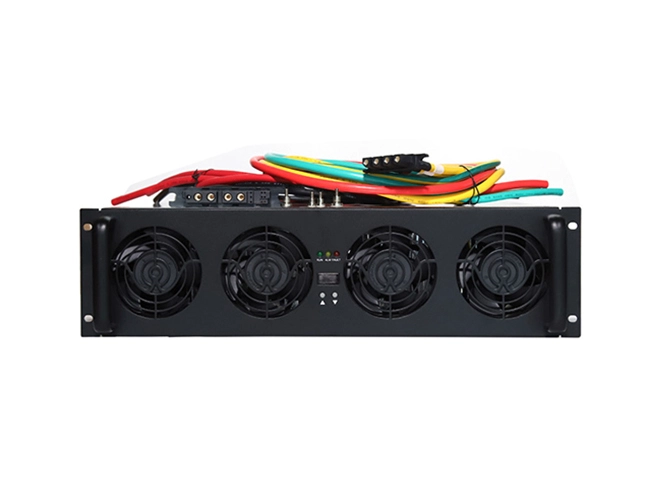

MXR150050B 50KW 1500V AC DC Converter EV Charger Module

Our products are widely used in automotive, electric power, railway, metallurgy, communications and other fields, and its performance cases are spread all over the country and around the world.

The MXR150050B 50kw 1500v ac dc converter ev charger module is a top-of-the-line product designed for commercial charging systems and electric vehicle charger charging stations. With its advanced CAN communications port and protocol, the module ensures efficient and reliable communication for a smooth and safe charging experience.

Its compact design and high-quality components make it a durable and efficient choice for businesses and charging stations. Thank you for considering our product for your commercial EV charging needs.

SKU: MXR150050B Category: Power Module

Description

Input Characteristics	Input Voltage	260-530Vac, three-phase + PE
	Input Current	≤95A
	Grid frequency	45-65Hz
	Power Factor	>0.99(Load≥50%)
	ITHD	≤5%(Load≥50%)
Output Characteristics	Output Power	50kW
	Voltage Range	0~1500Vdc
	Current Range	0~134A
	Voltage Regulation accuracy	≤±0.3%
	Stabilized Current accuracy	≤±0.3%
	Ripple Peak-to-Peak	≤0.3%
Environmental Conditions	Full load working temperature	–40°C to +75°C (Output power derating at rated output voltage when the temperature is higher than 55°C.)
	Storage Temperature	-40℃～80℃
	Relative Humidity	≤95% RH without condensation
	Altitude	≤2000m (derating can be used above 2000m)
	MTBF	>1000000 hours
Basic Indicators	Size(W×D×H)	440×380×125mm
	Weight	≤23kg
	Efficiency(full load)	>97%
	Cooling Method	Forced air cooling
	Protection Level	IP20
	Standby Power consumption	≤13.5W
	Communication	CAN bus
	Parallel Quantity	≤60 pieces
	Indicator	Green: normal operation Yellow: alarm Red: fault LED digital tube
