The 50kW car charging pile bi-directional DC-DC module is a bi-directional DC-DC converter module designed for car charging piles of 50kW power level. The 50kW car charging pile bi-directional DC-DC module plays an important role in the charging of high-power electric vehicles and energy feedback. It meets the needs of EV charging pile systems and facilitates bi-directional energy flow and energy management between EVs and the grid.

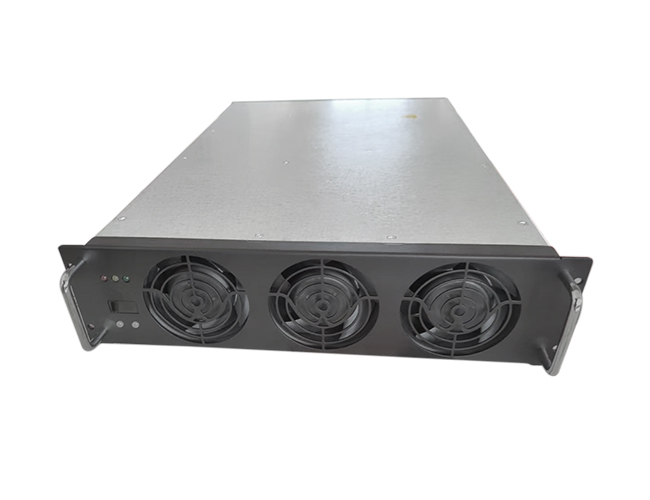

MXC100050B 50kw Bidirectional DC/DC module
Description
Output Power: 50kW
Input Voltage: 530VDC～950VDC
Input Current: 95 A
Output Voltage Range: 200VDC～1000VDC
Output Current Range: 167 A
Voltage stabilised accuracy: ≤±0.5%
Current stabilised accuracy: ≤±1％ (Output loading 20％～100％ rated range)
Ripple Peak to Peak: <1%；≤1%
Current Sharing Imbalance: ≤±5%
Operating Temperature: -40℃～75℃(derating is required above 55℃)
Altitude: ≤ 2000m, output derating above 2000m
Size(W×D×H): 330×450×87mm
Weight: ≤20kg
Efficiency(full load): >99%
Isolated Method: High Frequency Isolation
Cooling Mode: Fan cooling
Communication Method: CAN Communication
Parallel Module Quantity: ≤60 pieces
