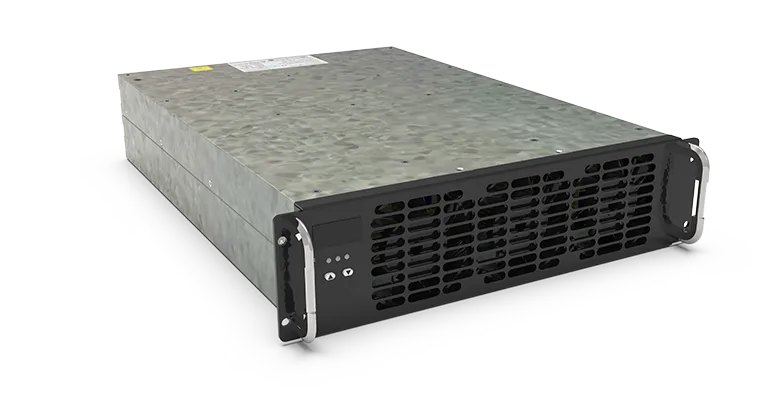

UR100040-SW (EU) charging module

UR100040-SW（EU） charging module adopts the world’s leading power technology specially designed for the power conversion equipment of EV charging, with an ultra wide constant power output voltage range. It has the characteristics of active power factor correction, high efficiency, high reliability, intelligent control and attractive appearance; The module adopts intelligent air-cooled heat dissipation technique, with high power density and small space occupation; It has the functions of hot plug and battery back filling protection.

SKU: UR100040-SW（EU） Category: Power Module

Description

AC Input

Input voltage	260VAC~530VAC
Input frequency	55±10Hz
THD	≤5%
Power factor	Rated output load PF ≥ 0.99
Max. input current	<60A
Input under voltage protection	255±5V
Input over voltage protection	530±5V
Input Power Derating	260±5V

DC Output

Rated output	1000V/40A
Constant power voltage range	40kW (300V~1000V)
Output voltage range	150V~1000V
Output current range	0~133.3A
Output over voltage protection	1010±5V
Output under voltage alarm Constant	140±2V
Short circuit protection	Short circuit retraction constant current output is adopted in case of short circuit, which can be recovered automatically
Voltage stabilized accuracy	≤±0.5%
Load sharing	≤±3%
Max. startup overshoot	≤±1%
Current stabilized accuracy	≤±1%
Startup time	1s
Efficiency	Highest efficiency>96%, rated efficiency>95%

Communication & Alarm

Communication	CAN
Max. Number of parallel machines	60pcs
Alarm and status	CAN bus communication LED display

Operating Environment

Operating temperature	-40℃~75℃,derates from 55℃
Overtemperature protection	On temperature >75°C±4°C or <-40°C±4°C, module will shut down automatically
Storage temperature	– 40°C~85°C
Humidity	≤95% RH, without condensation
Atmospheric pressure/ Altitude	79kPa~106kPa/2000m
