UR100030-SW（EU） high power 30kW charging module is dedicated to application in the fast charging station. With the world’s leading power electronic control technology and design technique, the module has good performance of high power density, high efficiency, wide voltage range, wide operating temperature range. CE(ClassB) and CTUVs certification have been obtained for world wide application.

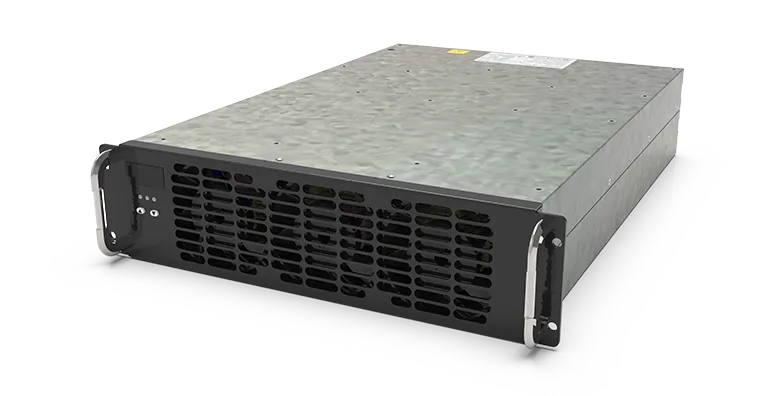

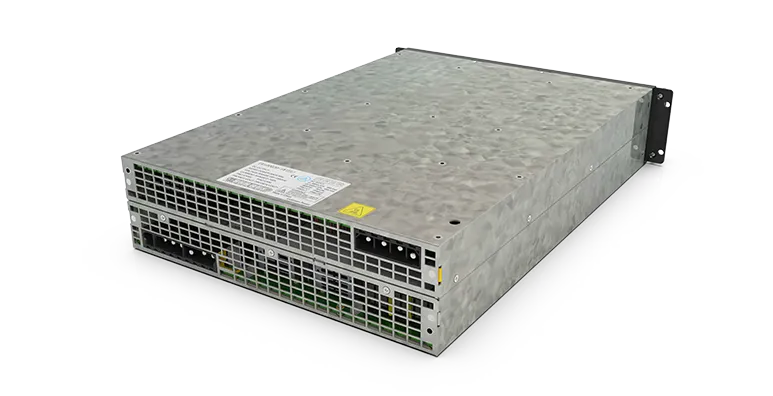

UR100030-SW (EU) high power 30kW charging module
Description
| Input voltage | 260VAC~530VAC |
| Input frequency | 55±10Hz |
| THD | ≤5% |
| Power factor | Rated output load PF ≥ 0.99 |
| Max. input current | <60A |
| Input under voltage protection | 255±5V |
| Input over voltage protection | 530±5V |
| Input Power Derating | 260±5V |
| Rated output | 1000V/30A |
| Constant power voltage range | 30kW(300V~1000V) |
| Output voltage range | 150V~1000V |
| Output current range | 0~100A |
| Output over voltage protection | 1010±5V |
| Output under voltage alarm Constant | 140V±2V |
| Short circuit protection | Short circuit retraction constant current output is adopted in case of short circuit, which can be recovered automatically |
| Voltage stabilized accuracy | ≤±0.5% |
| Load sharing | ≤±3% |
| Max. startup overshoot | ≤±1% |
| Current stabilized accuracy | ≤±1% |
| Startup time | 1s |
| Efficiency | Highest efficiency>96%, rated efficiency>95% |
| Communication | CAN |
| Max. Number of parallel machines | 60pcs |
| Alarm and status | CAN bus communication LED display |
| Operating temperature | -40℃~75℃,derates from 55℃ |
| Overtemperature protection | On temperature >75°C±4°C or <-40°C±4°C, module will shut down automatically |
| Storage temperature | – 40°C~85°C |
| Humidity | ≤95% RH, without condensation |
| Atmospheric pressure/ Altitude | 79kPa~106kPa/2000m |
| Acoustic Noise | ＜65dB |
| Cooling | Fan cooling |
| Dimension | 300mm (W) *84mm (H) *437.5mm (D) |
| Weight | ≤16kg |
