MXR50020-DC is a high-performance 20kw DC input charging module with forced air cooling technology for stable temperature and efficient charging. It communicates using CAN and RS485, making it suitable for intelligent control systems. This module has over 97.5% peak efficiency, making it ideal for fast and reliable charging.

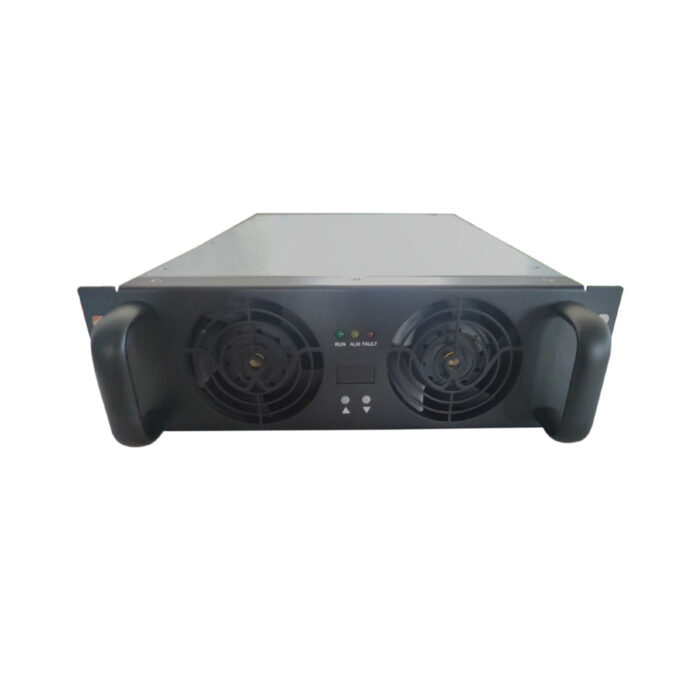

MXR50020-DC 20kw dc charger module
Description
Output Power: 20kw
Input Voltage: 150Vdc~850Vdc,DC+PE
Input Current: <85A
Output Voltage Range: 0Vdc~500Vdc(Continuously Adjustable)
Output Current Range: 0~50A (Continuously Adjustable)
Voltage stabilised accuracy: ≤±0.5%
Current stabilised accuracy: ≤±1%
Current Sharing Imbalance: ≤±1%
Ripple Peak to Peak: ≤1%
Operating Temperature: -40℃～75℃, output derating above 55℃
Storage Temperature: -40℃～80℃
Relative Humidity: ≤95% RH
Altitude: ≤ 5000m
MTBF: >100000 hours
Size(W×D×H): 240×350×87mm
Weight: <8kg
Cooling Mode: Forced air cooling
Communication Method: CAN & RS485
Indicator: Green: normal operation Yellow: alarm Red: fault LED digital tube
Certification: ROHS
