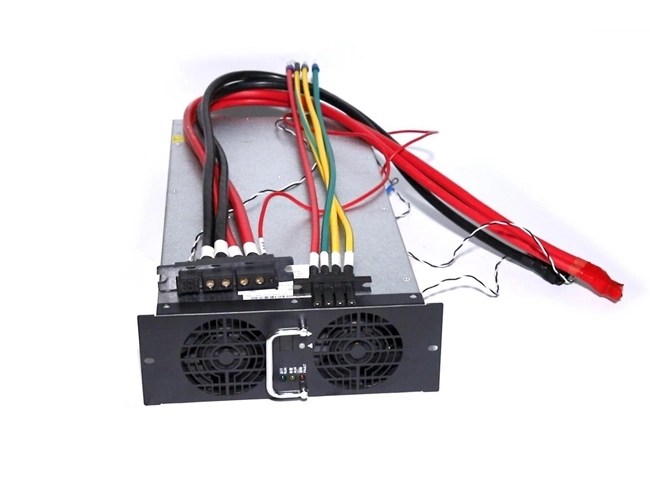

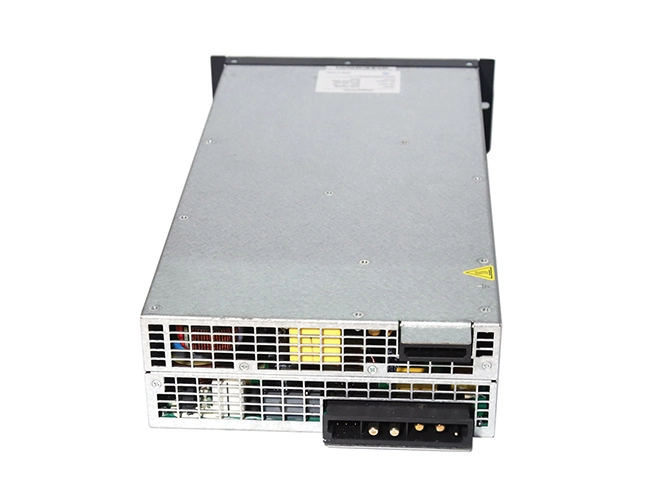

MXR100200B is a low voltage and high current charging module that offers a powerful 20kw output and a wide voltage range, making it the ideal solution for low-voltage vehicles. Its advanced technology allows for seamless conversion of AC to DC, providing a fast and efficient charging experience for EV owners.
With its compact design and easy installation process, MXR100200B is a convenient choice for businesses looking to enhance their EV charging capabilities and attract more customers.
| Input Characteristics | Input Voltage | 285-475Vac, three-phase + PE |
| Input Current | <40A | |
| Grid Frequency | 45-65Hz | |
| Power Factor | ≥0.99 @50%~100% full load output power | |
| ITHD | ≤5% @50%~100% full load output power | |
| Output Characteristics | Output Power | 20kw |
| Voltage Range | 40-100Vdc | |
| Current Range | 0~200A | |
| Rated Current | 200A | |
| Voltage stabilized accuracy | ≤±0.5% | |
| Current stabilized accuracy | ≤±1% (output load 20%~100% rated range) | |
| Current Sharing Imbalance | ≤±5% | |
| Ripple Peak to Peak | ≤1% | |
| Environmental Conditions | Operating Temperatue | -40℃～75℃, output derating above 50℃ |
| Storage Temperature | -40℃～+75℃ | |
| Relative Humidity | ≤95% RH ,Non-condensation | |
| Altitude | ≤1000m without derating, >1000m, the working temperature decreases by 1℃ for each additional 100 m | |
| MTBF | >500000 hours | |
| Basic Indicators | Size(W×D×H) | 226×395×84mm |
| Weight | ≤11kg | |
| Efficiency(full load) | >95% | |
| Cooling Mode | Forced air cooling | |
| Standby Power consumption | 8.5W+/-0.5W | |
| Communication Method | CAN bus | |
| Parallel Module Quantity | ≤60 pieces | |
| Indicator | Green: normal operation Yellow: alarm Red: fault |
