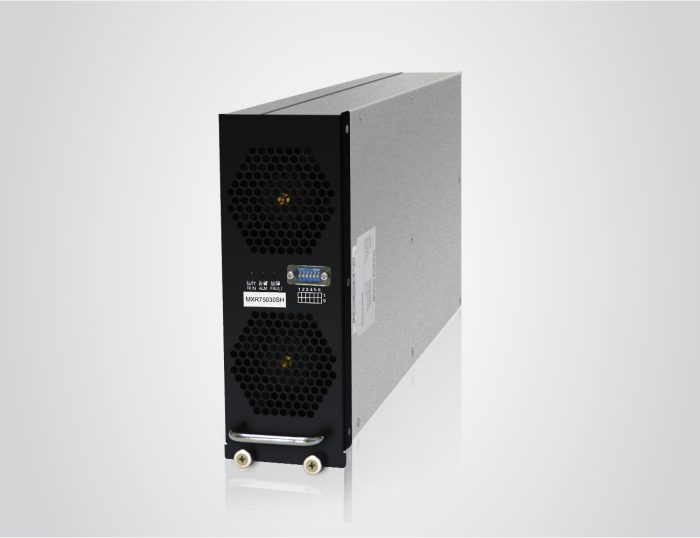

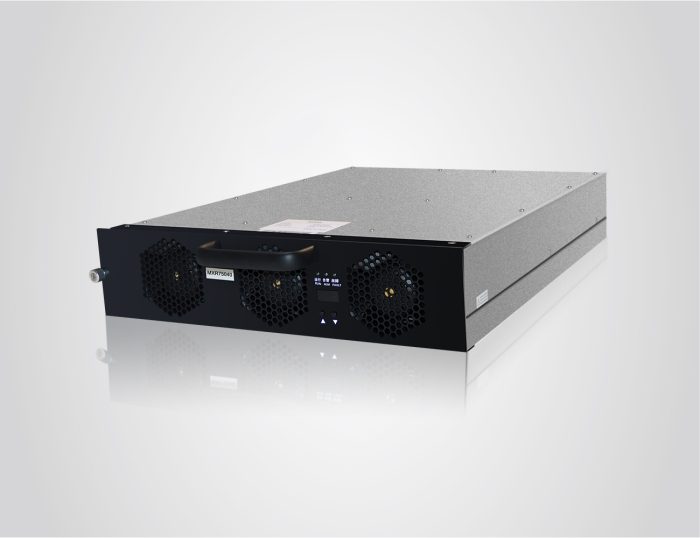

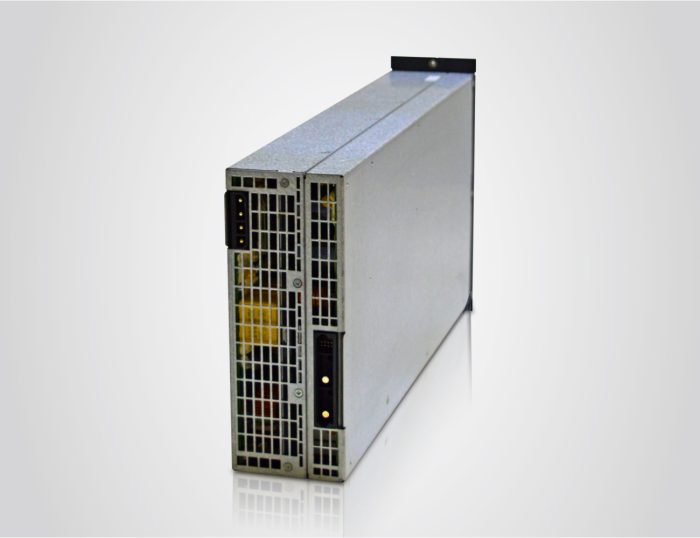

MXR100030 30kW AC/DC charging module

Description

EV Charger Module

Flexible, reliable, low-cost power module for ev charging(charger) station. MXR series ac/dc charging module is key power part of dc ev fast charger, which converts ac to dc and then charge electric vehicles, providing reliable dc supply for equipment requires dc power.

Main Features

● ultra-wide output voltage range, 100 ~ 1000vdc, suitable for various models;
● ultra-high output power, in 300v~1000v output voltage, 30kw constant power output;
● wide operating temperature range, -40℃ ~ 75℃;
● full load efficiency is higher than 95.5%, high efficiency in the whole working range, and more energy saving;
● ultra-low noise, improve user charging experience;
● the current in the low-voltage area does not shrink, and the charging speed is faster;
● the module is built with residual pressure relief loop to reduce system cost and improve system reliability;

ev charging(charger) station power module integrated circuits and reference designs
our integrated circuits and reference designs help you create smarter and more efficient power modules that can charge electric vehicles (evs). Whether it is a power factor correction (pfc) stage or a dc/dc power stage design, we have the right circuits to design an efficient power module.
ev charging station power module designs require expertise to enable:
accurate sensing and control of power output.
high-power density to support faster and higher power conversions.
efficient pfc and dc/dc conversion to reduce losses.
