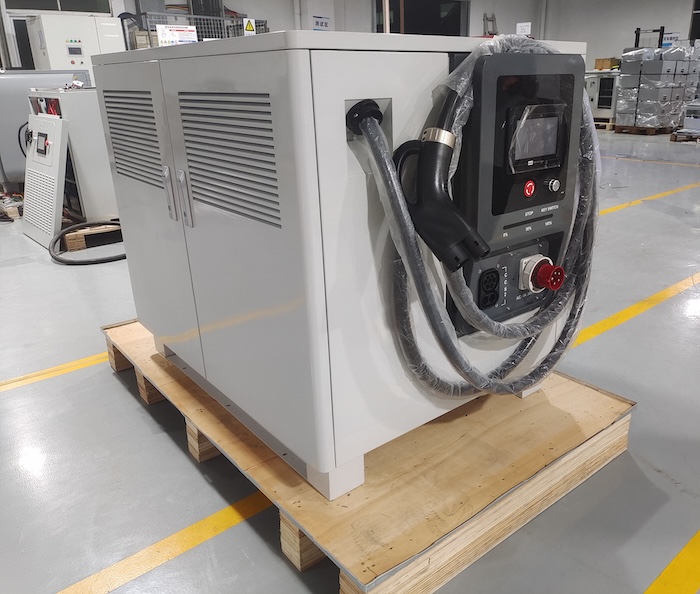

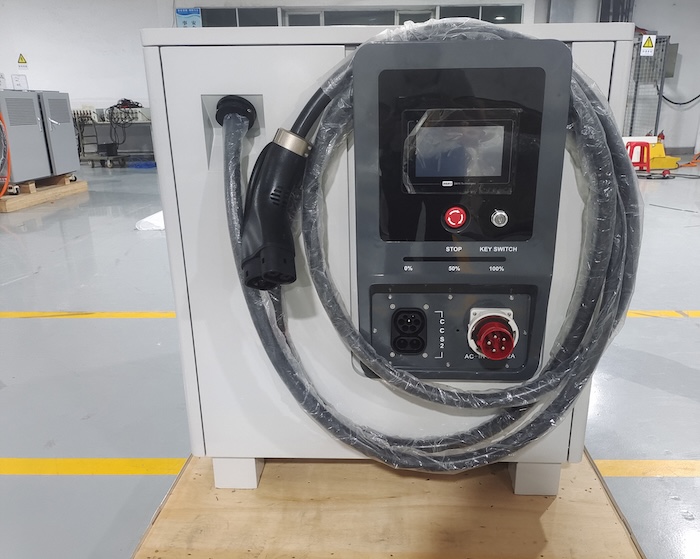

Description

Battery parameters
Battery parameters
Charging voltage
DC CHARGER/AC380V
Charge Connector
CCS1/CCS2/CHAdeMO/GBT//Tesla
Type of Battery
LiFePO4
Nominal capacity
40KWh
60KWh
Charge rate
0.5C
Discharge rate
1C
Battery voltage
384V
614.4V
Depth of discharge
80%
Charge Cycles
6000
Rated voltage
3.2V
Rated frequency
105A
Cooling method
air cooled
IP level
IP54
Isolation method
direct detection
Charging parameters
Charging parameters
Output Voltage
DC200-750V
Power Output
40KW
Electric Current
0-100A
Charging mode
Automatic full, fixed power, fixed amount, fixed time
Safety Protections
Overvoltage、Overcurrent、Low-voltage、ESD、Lighting、Overcharge、Overload、Fire、Overheat、Waterproof、Leakage and Chip Protection
Cable Length
7 Meters(Customizable)
HMI
7-inch touch screen (charging station)
Language
English(Customizable)
machine parameters
machine parameters

Dimension L*W*H/mm
1000*950*1050
1250*925*1050
Weight/kG
550KG
766KG
Operating temperature/°C
-10°C-60°C
Altitude/m
<2000M
Noise/dB
≤60dB
Relative humidity/RH
5％～95％RH，non-condensing
Certificate
CE
