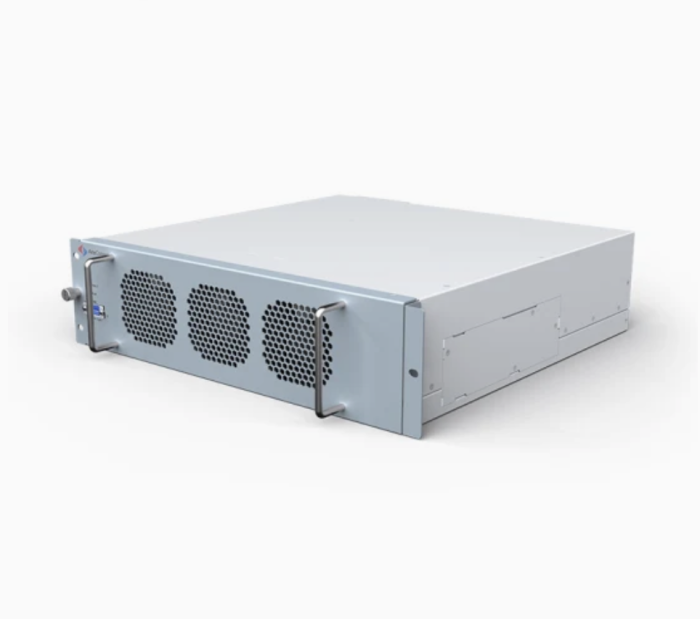

BEG1K0110G 62.5kw 1000V Bidrectional Power Converter

Description

BEG1K0110G is one of our BESTSELLING BIDIRECTIONAL power converter, which is used to connect battery to AC grid. The power module enables a maximum DC output power of 62.5kW and output voltage from 150Vdc to 1000Vdc with AC2DC mode and rated power 62.5kW and rated current 95A with DC2AC mode. The ACDC converter features excellent performance in energy storage applications, high power density and high reliability, high efficiency and wide expansion capacity.

Main features:

1. bidirectional converter
2. non isolation design
3. smooth transition of power flow while changing direction
4. wide voltage range at source side , suitable for various battery packs
5. constant current for higher output power at source side
6. full load efficiency above 98.7%
7. standby power consumption less than 12W
8. ambient temperature from -40ºC to +75ºC
9. plug & play
10. CAN2.0 bus communication, max 16 power modules in parallel
11. alarm and protection: 1. over/under voltage leads to automatic shutdown and power module will restart after voltage resumes normal; 2. over/short circuit leads to automatic shotdown and lock, and will restart after power off; 3. over temperature leads to automatic shotdown and power module will restart after temperature resumes normal.
