Description

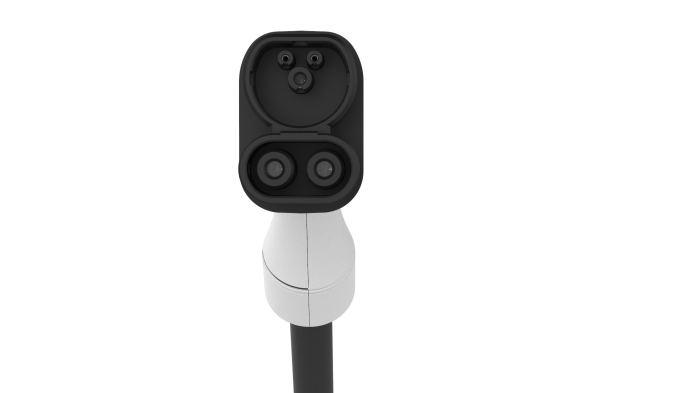

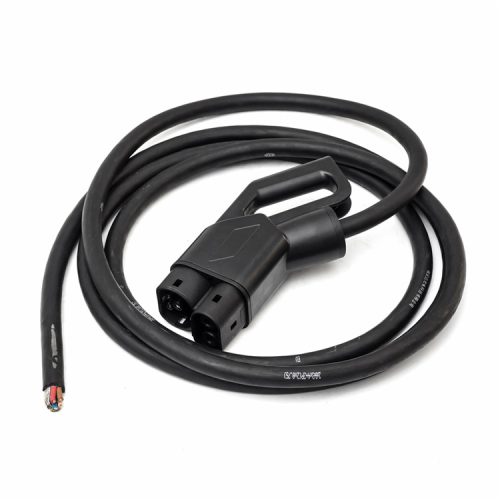

80A CCS2 plug with 6m cable
Description
- Protection level: IP55 (when the plug is connected to the socket)
- Operating environment temperature: -40ºC to 50ºC
- Mechanical life: >10000 times
- Insertion and extraction force: <100 N
Specification Table
- Maximum charging power: 200 kW
- Rated voltage: 1000V DC MAX
- Rated current: 200A MAX
- Temperature control resistance: PT1000 or NTC
- Number of power pins: 3 (PE, DC+, DC-)
- Number of signal contacts: 2 (CP, PP)
- Resistance: 1500Ω (between PE and PP)
- –PT1000 and NTC optional for temperature control
