Description
Type |
DC/AC Inverters |
Output Type |
Single |
Output Current |
0A-133.3A |
Output Frequency |
45-65HZ |
Size |
85mm(高)*360mm(宽)*459mm(深) |
Weight |
20Kg |
Certificate |
CE, UL |
Product name |

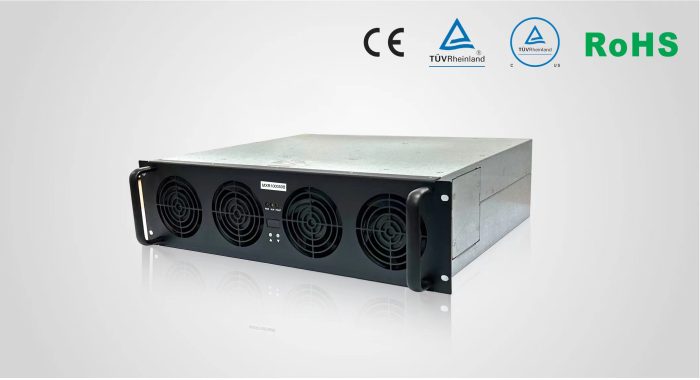

40KW@1000V EV DC Charging Power Module |
Input voltage |
260Vac-530Vac,three-phase+PE |
Input Current |
<80A |
Grid frequency |
45Hz-65Hz |
Output Voltage Range |
100Vac-1000Vac |
Output Current Range |
0A-133.3A(continuously regulated) |
Rated Current |
40A |
Cooling Mode |
Fan cooling |
Efficiency(full load) |
>95.5% |
Power |
40KW |
