Description
Discover our range of 7kW, 15kW, 20kW, 30kW, 40kW DC charger, designed to deliver reliable performance, efficiency and versatility for a wide range of applications. Available in multiple power capacities, these products offer flexible options to meet different operational requirements, making them suitable for commercial, industrial and other power-related applications, depending on the selected configuration.
Output Voltage: 50–750V for lower-power configurations; 200–1000V for higher-power configurations
Input Voltage: 100–280V for lower-power configurations; 280–500V for higher-power configurations
Output Current: Up to 60A for 20kW configurations, up to 100A for 30kW and up to 133A for 40kW
Input Current: 32A for configurations up to 20kW; 49A for 30kW; 63A for 40kW
Input Connection: L+N+PE for lower-power configurations; 3P+N+PE for higher-power configurations
Gun Rated Current: Up to 67A for 20kW, 100A for 30kW and 133A for 40kW
Charging Cable Length: Standard 5 metres; customised lengths available
Inlet Cable Length: Standard 0 metres; customisation available
Display: 5-inch screen
Charging Functions: Plug and Charge, RFID card authentication
Smart Features: App connectivity, OCPP and load balancing (optional)
Protection Rating: IP54
Supported Charging Standards: GB/T 27930, CHAdeMO 2.0, DIN 70121, OCPP 1.6 (JSON), ISO 15118
Product Dimensions: 660 × 540 × 280 mm for the listed 30kW and 40kW configurations
Package Weight: 61.1 kg for 20kW, 73 kg for 30kW and 87.75 kg for 40kW
Certification: CE marking shown in the supplied product image

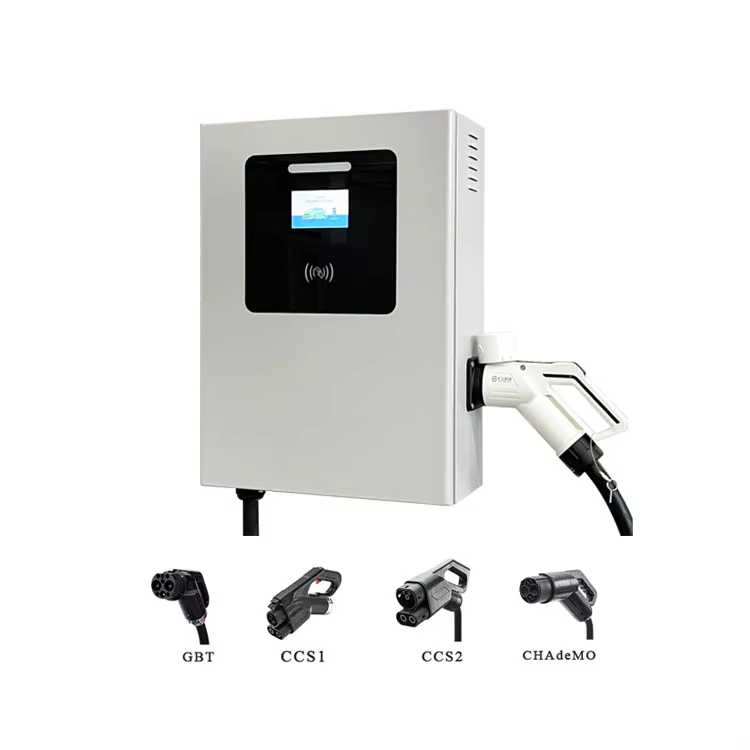

Multiple Charging Connector Options
Available connector options include CCS1, CCS2, CHAdeMO and GB/T, depending on the selected configuration and market requirements.
