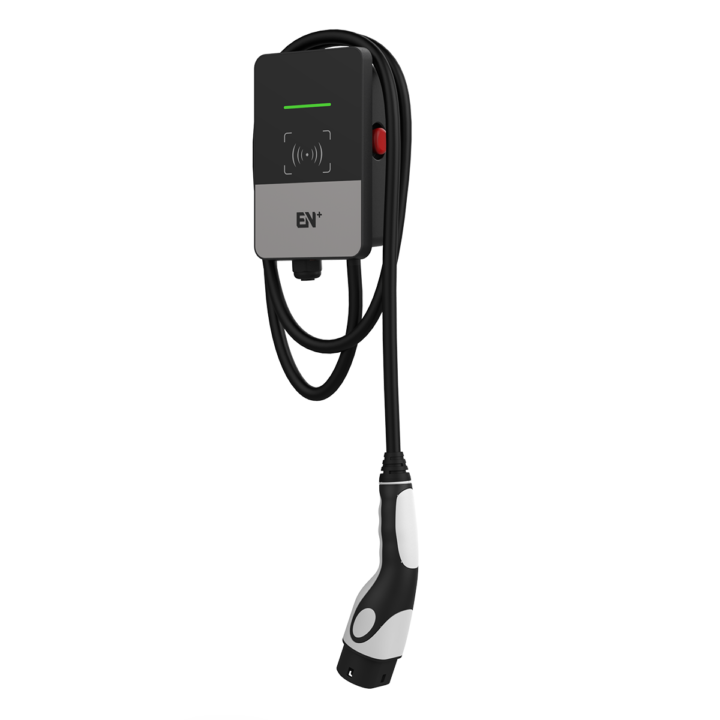

7kW Home Mini Wallbox AC Single-Phase EV Charger

SKU AC7000-AE-05

  • Flash Sale

0
0
0
0
Days
0
0
Hrs
0
0
Min
0
0
Sec
Home charger is the single phase 7kW AC charger with maximum 32A output current, specially designed for private use.
With half size of A4 paper .It saves space and is easy to operate, which is an ideal solution for your home or company.
The charger is equipped with RFID card function for ID authentication to prevent theft of electricity. Only the user with RFID card has access to the charging.

Description

Key Features:
Power: 7kW
Output Current: 32A
Charging Outlet: One Type 2 charging gun (can be customised)
RFID function
Protection Grade: IP65
Warranty: 2 years
Specification
Model
AC7000-AE-05
AC Nominal Input
Phases/Lines
1 phase + netural+ PE
Voltage
230V±10%
Frequency
50Hz
AC Nominal Output
Voltage
230V±10%
Current
32A
Power
7KW
Structure Design
Housing Material
Plastic PC940
Installation Method
Wall-mount/Floor-stand
Wall-mount Bracket
Not necessary
Charging Outlet
One charging gun(Type 2)
Cable Length
4 M
LED Indicator
Green/Yellow/Red color for different status
LCD Screen
No
Emergency Stop Button
Yes
RFID Function
Yes
RFID Card
2pcs Mifare card
Environmental Index
Operating Temperature
 – 30~ + 50℃
Working Humidity
5%~95% without condensation
Working Altitude
<2000M
Protection Grade
IP65
Application Site
Indoor/Outdoor
Cooling Method
Natural cooling
Security Protection
Multiple Protection
Over/Under voltage protection,Overload protection,Short circuit protection,Current leakage protection,Grounding protection,Surge protection,Over/Under temperature protection
MTBF
100,000 hours
Safety Standard
IEC 61851-1:2017,IEC 62196-2:2016
Warranty
2 years
Package Information
Product Dimension
233*150*69.5MM
Package Dimension
480*340*135MM
Net Weight
3.6KG
Gross Weight
4.5KG
External Packing
Carton

Additional Information
